B. Vertical Curves
1. Nomenclature

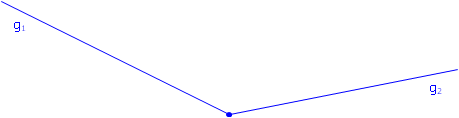

A vertical curve is used to provide a smooth transition between two different grade lines, Figure B-1.
|
|

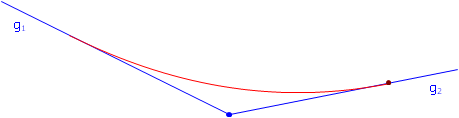

| Figure B-1 Adding a Vertical Curve |
The parts of the curve, Figure B-2, are:
 |

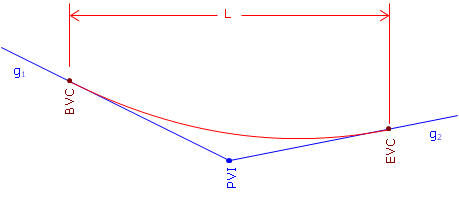

| Figure B-2 Curve Parts |
| PVI | Point of Vertical Intersection (aka PI) |
| BVC | Begin Vertical Curve (aka, BC, PVC, PC) |
| EVC | End Vertical Curve (aka EC, PVT, PT) |
| L | Curve Length |
Distances, including the curve length, are horizontal, not along the grade lines or curve.
An equal tangent vertical curve is used. This places BVC and EVC equidistant from the PVI, Figure B-3.
 |

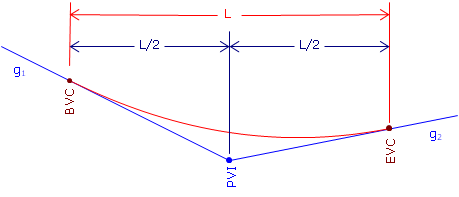

| Figure B-3 Equal Tangent Vertical Curve |
The curve is tangent to the grade lines at both ends to provide a smooth transition between the grade lines and curve.
The stations and elevations of the BVC and EVC are determined from Equations B-1, -2, -3, and -4.
 |
 |
|
| Equations B-1 and B-2 | Equations B-3 and B-4 |
Because grade ratio and percent differ by a factor of 100 as do distances in feet or stations, care must be taken to use the correct form of each in Equations B-1 through B-4. If g is in %, then L must be in stations, if g is a ratio, then L is in feet.
