H. Closed Link Traverse
1. General

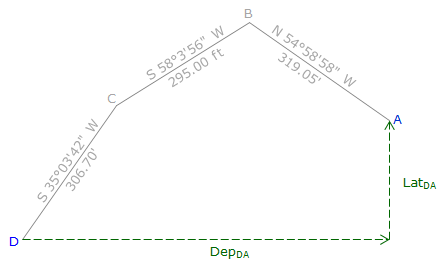

In this chapter we will cover computational differences between closed loop and link traverses. Unlike a loop traverse, a link traverse does not close back on itself. In order for a link traverse to be closed, the positions of its endpoints must be known. They must be known either relative to each other, Figure H-1(a) and (b):
|
(a) |
|
(b) |
|
Figure H-1 |
or,

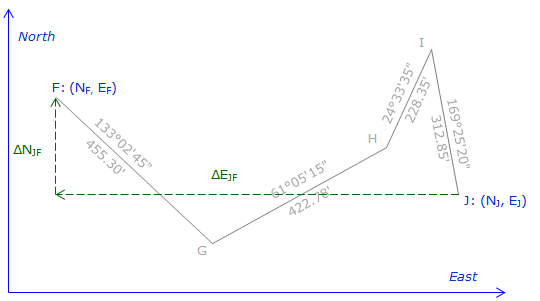

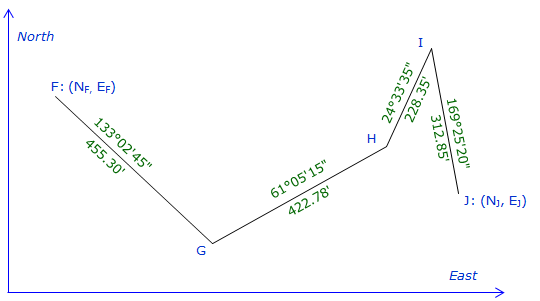

by coordinates in the same coordinate system, Figure H-2(a) and (b):
|
(a) |
|
(b) |
|
Figure H-2 |
